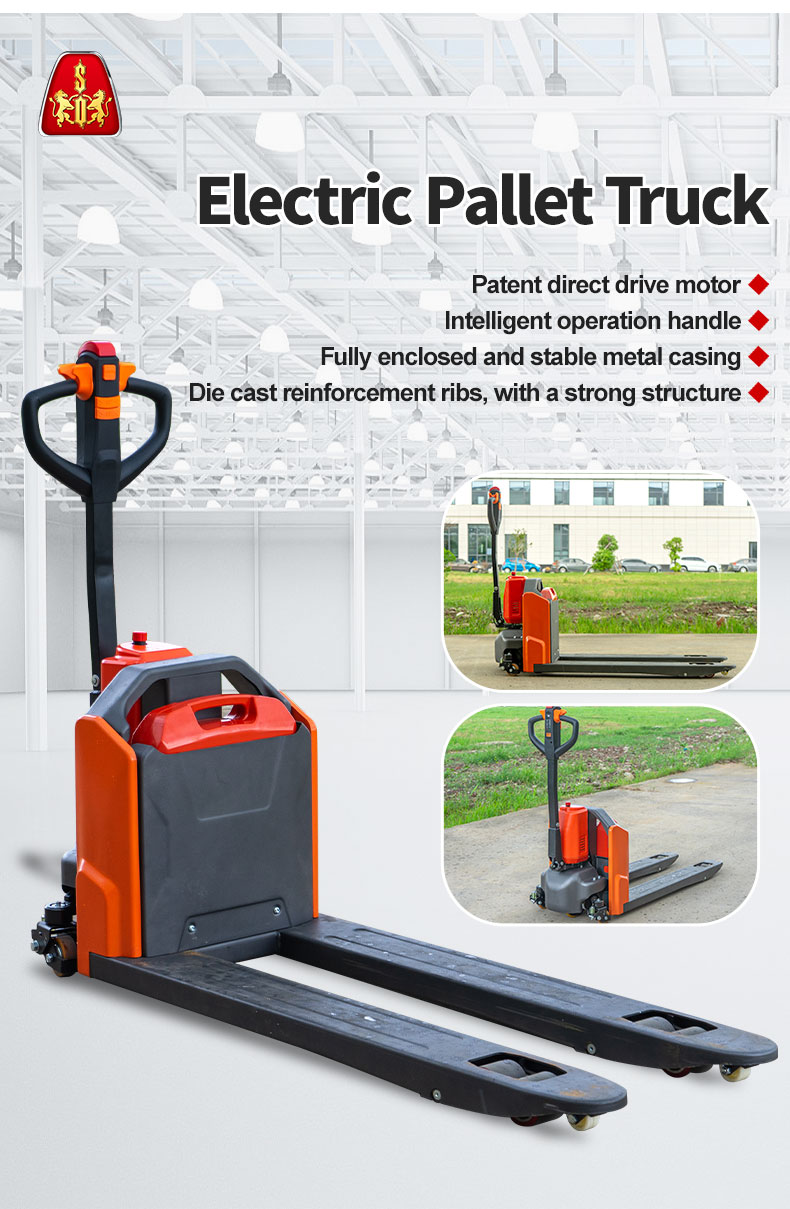

CBD20L
SHANGQI
DATA SHEET
| Model | CBD12 | CBD20 | |
| Drive | Lithium Battery | ||
| Drive way | Walkie type | ||
| Rated capacity | Q(t) | 1.2 | 2 |
| Load center | c(mm) | 560 | 600 |
| Front overhang | x(mm) | 862 | 951 |
| Wheelbase | y(mm) | 1132 | 1221 |
| Service weight | kg | 150 | 160 |
| Tires | PU | ||
| Tires size ,front | Φ(mm) | 210*75 | 210*75 |
| Tires size ,rear | Φ(mm) | 80*70 | 80*70 |
| Additional wheels(dimensions) | Φ(mm) | 80*30 | 80*30 |
| Wheels,numbr front/rear(x=driven s=wheels) | 1/2/2 | 1/2/2 | |
| read,front | b10(mm) | 440 | 440 |
| Tread,rear | b11(mm) | 380 | 380 |
| Lift height | h3(mm) | 110 | 110 |
| Height of tiller in drive position in./max. | h14(mm) | 700/1160 | 700/1160 |
| Height,lowered | h13(mm) | 85 | 85 |
| Overal length | l1(mm) | 1508 | 1597 |
| Length to face of forks | l2(mm) | 433 | 433 |
| Overal width | b1(mm) | 540 | 540 |
| Fork size | s/e/l(mm) | 47/160/1070 | 47/160/1150 |
| （800X1200mm)(pallet 800×1200) RASA | Ast(mm) | 2043 | 2176 |
| Turning radius | Wa(mm) | 1295 | 1384 |
| 行走速度Travel speed (laden/unladen) | km/h | 0-4.4 | 0-4.4 |
| Lifting speed (laden/unladen) | m/s | 0.02/0.025 | 0.017/0.022 |
| Descending speed (laden/unladen) | m/s | 0.05/0.04 | 0.05/0.04 |
| Max. gradeability (laden/unladen) | %(°） | 4/16(2.9/9) | 7/16(4/9) |
| Service brake | Electromagnetic control | ||
| Drive motor | KW | 0.75（S2-45Min） | 1（S2-60Min） |
| Lifting motor, rated S3 | KW | 0.5 | 0.8 |
| Battery Voltage/Capacity | V/Ah | 24/20 | 48/20 |
| Battery weight | Kg | 4.7 | 7.8 |
